40SB Series

PERFORMANCE DATA

Model	Poles	RatedVoltage	RatedPower	RatedTorque	RatedSpeed	MaximumToque	MaximumSpeed	RatedCurrent	MaximumCurrent	TorqueCoefficient
Units	/	VAC/VDC	W	N.m	rpm	N.m	rpm	A	A	N.m/A
40S00230B3	5	220VAC	50	0.16	3000	0.48	6000	0.6	1.8	0.29
40S00330B3	5		100	0.32	3000	0.96	6000	0.8	2.4	0.42
40S00230B5	5	48VDC	50	0.16	3000	0.48	4500	1.4	4.2	0.12
40S00330B5	5		100	0.32	3000	0.96	4500	2.8	8.4	0.12

Model	RotorIntertia	BackE.M.F	InsulationClass	SafetyClass	EncoderType	Environment	Weight	Brake RatedVoltage	Without BrakeLength	With BrakeLength
Units	Kg*cm²	V/Krpm	Class	/	/	/	Kg	VDC	mm	mm
40S00230B3	0.05	17.5	F	IP65  (Except outputshaft end)	Incremental orabsolute encoder	-20℃ to 40℃  humidity＜90%	0.39	24	69.5	99
40S00330B3	0.08	22.5					0.52	24	87.5	117
40S00230B5	0.05	7.4	F	IP65  (Except outputshaft end)	Incremental orabsolute encoder	-20℃ to 40℃  humidity＜90%	0.39	24	69.5	99
40S00330B5	0.08	7.4					0.52	24	87.5	117

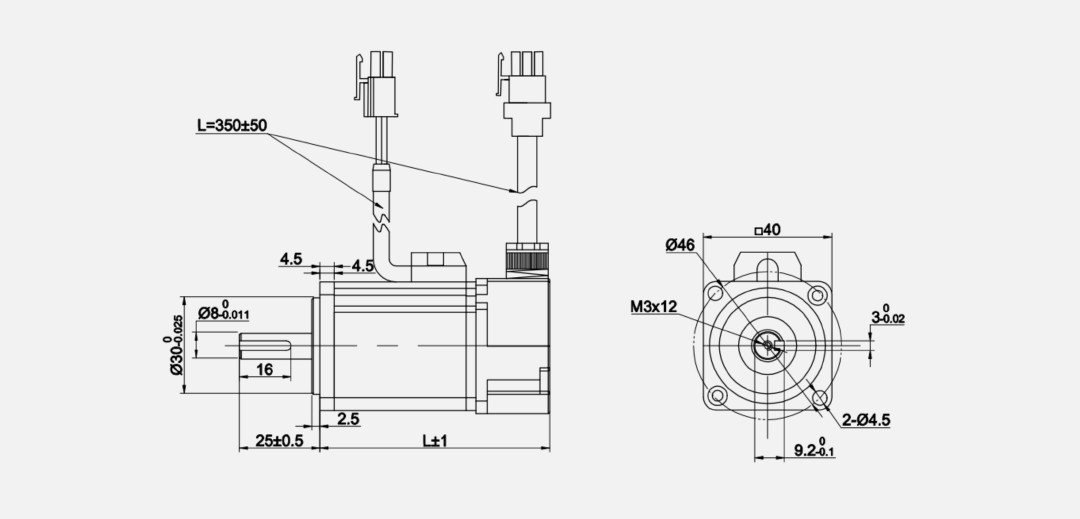

OUTLINE MAP
