| GENERAL SPECIFICATION |
| Attributes | Units | Value |
| Motor Diameter | mm | 80 |
| Rated Voltage | VDC | 48 |
| Rated Power | W | 400 |
| Rated Torque | N.m | 50 |
| Rated Speed | rpm | 80 |
| Maximum Speed | rpm | 160 |
| Rated Current | A | 14 |
| Maximum Current | A | 25 |
| Insulation Class | Class | F |
| Encoder Type | / | Magnetic encoders |
| Environment | / | 0-40 |
| Weight | Kg | 20 |
| Duty(%) | 25% |

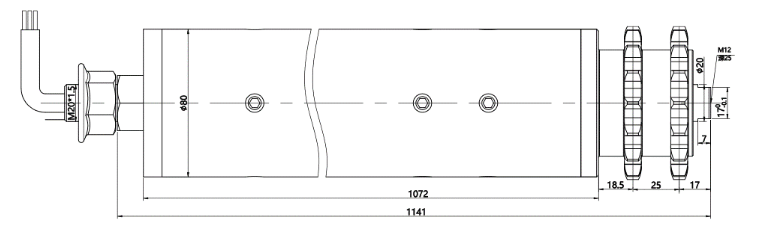

| OUTLINE MAP |
