| GENERAL SPECIFICATION |
| Model No. | Number of poles | Number of phase | Rated voltage (VDC) | Rated speed (RPM) | Continuous stall torque (N.m) | Rated torque (N.m) | Rated power (W) | Peak torque (N.m) |
| 90BYB136D030C-02 | 4 | 3 | 48 | 3000 | 2.64 | 2.2 | 691 | 6.6 |
| Model No. | Peak current (A) | Torque constant (Nm/A) | Back E.M.F (V/KRPM) | Rotor inertia (g.cm²) | Body length (mm) | Voltage range (VDC) | Speed Range (RPM) | Weight (Kg) |
| 90BYB136D030C-02 | 61.5 | 0.107 | 4.24 | 2.95 | 286 | 48~310 | 1000~3000 | 5 |

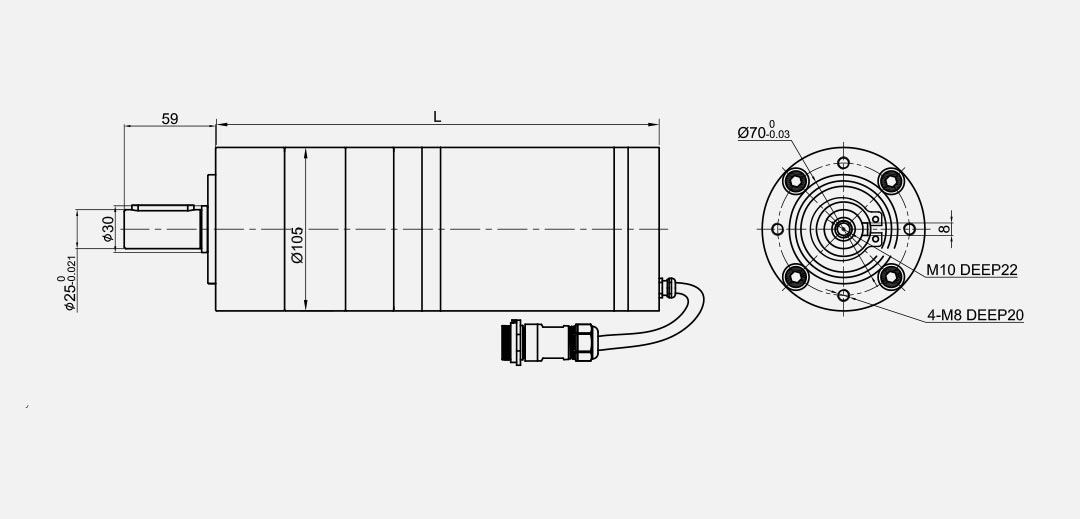

| OUTLINE MAP |
