| GENERAL SPECIFICATION |
| Model No. | Number of poles | Rated voltage (VDC) | Rated power (W) | Rated torque (N.m) | Rated speed (RPM) | Maximum torque (N.m) | Maximum speed (RPM) | Rated current (A) | Maximum current (A) |
| 86BSA071D025C-01 | 4 | 48 | 200 | 27.7 | 62.5 | 50 | 80 | 6.2 | 12 |
| Model No. | Torque constant (N.m/A) | Rotor inertia (Kg*cm²) | Back E.M.F (V/Krpm) | Insulation class (Class) | Protection class (IP) | Encoder type | Operating environment (°C) | Weight (Kg) |
| 86BSA071D025C-01 | 6.15 | 0.86 | 10.8 | B | 42 | Optical encoder | -40°C~50°C | 4.3 |

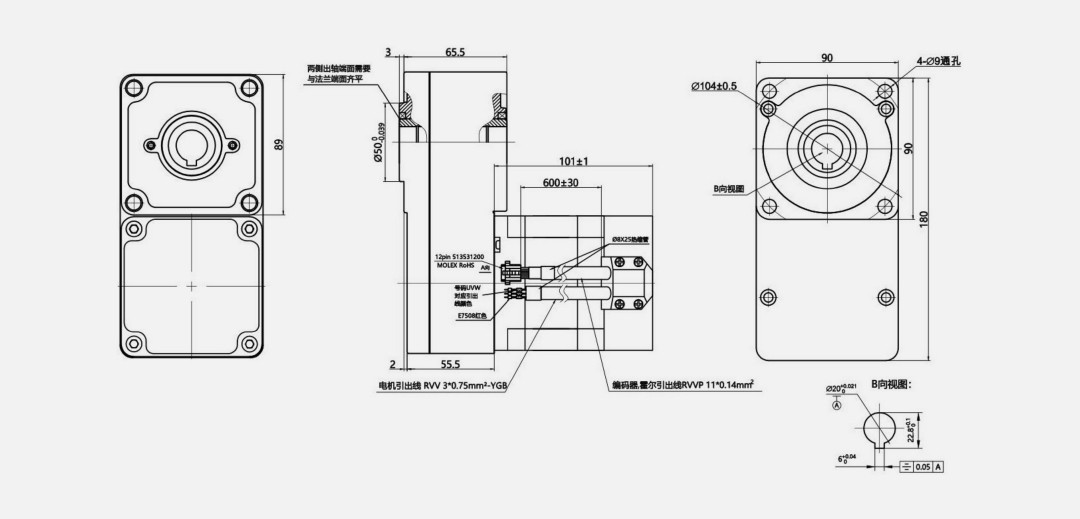

| OUTLINE MAP |
