| GENERAL SPECIFICATION |
| Model No. | Rated voltage (V) | Rated power (W) | Rated speed (RPM) | Rated torque (mNm) | Rated current (A) | No-load speed (RPM) | Length (mm) |
| 80ZYT122-12V | 12 | 54 | 1200 | 430 | 7.1 | 1600 | 122 |
| 80ZYT122-24V | 24 | 54 | 1200 | 430 | 3.5 | 1600 | 122 |
| 80ZYT122-40V | 40 | 54 | 1200 | 430 | 2 | 1600 | 122 |
| 80ZYT135-12V | 12 | 106 | 2900 | 350 | 11.5 | 3200 | 135 |
| 80ZYT135-24V | 24 | 106 | 2900 | 350 | 5.8 | 3200 | 135 |
| 80ZYT135-40V | 40 | 128 | 3500 | 350 | 4 | 3750 | 135 |
| 80ZYT-160-24V | 24 | 60 | 1430 | 400 | 3.5 | 1650 | 160 |
| 80ZYT-180-24V | 24 | 88 | 1025 | 820 | 5.5 | 1300 | 180 |
| 80ZYT175-12V | 12 | 207 | 3200 | 620 | 10 | 3500 | 175 |
| 80ZYT175-24V | 24 | 201 | 3100 | 620 | 6 | 3500 | 175 |
| 80ZYT175-40V | 40 | 221 | 3350 | 630 | 4.2 | 3650 | 175 |

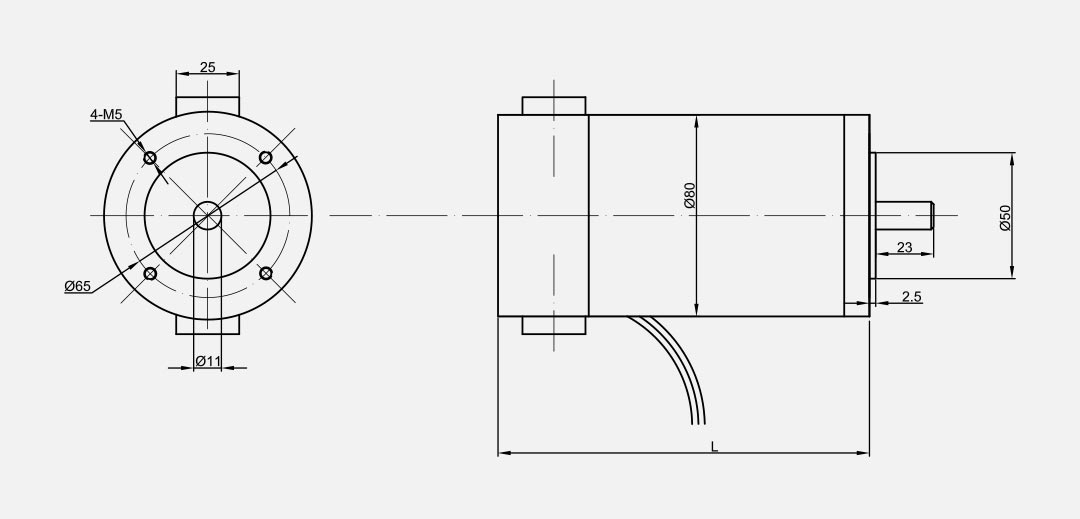

| OUTLINE MAP |
