| GENERAL SPECIFICATION |
| Model No. | Number of poles | Number of phase | Rated voltage (VDC) | Rated speed (RPM) | Continuous stall torque (N.m) | Rated torque (N.m) | Rated power (W) | Peak torque (N.m) |
| 42BYA075B030C-02 | 4 | 3 | 24 | 3000 | 0.192 | 0.16 | 50 | 0.48 |
| Model No. | Peak current (A) | Torque constant (Nm/A) | Back E.M.F (V/KRPM) | Rotor inertia (g.cm²) | Body length (mm) | Voltage range (VDC) | Speed Range (RPM) | Weight (Kg) |
| 42BYA075B030C-02 | 9.6 | 0.05 | 3.947 | 14.6 | 134 | 24~48 | 1000~3000 | 1.0 |

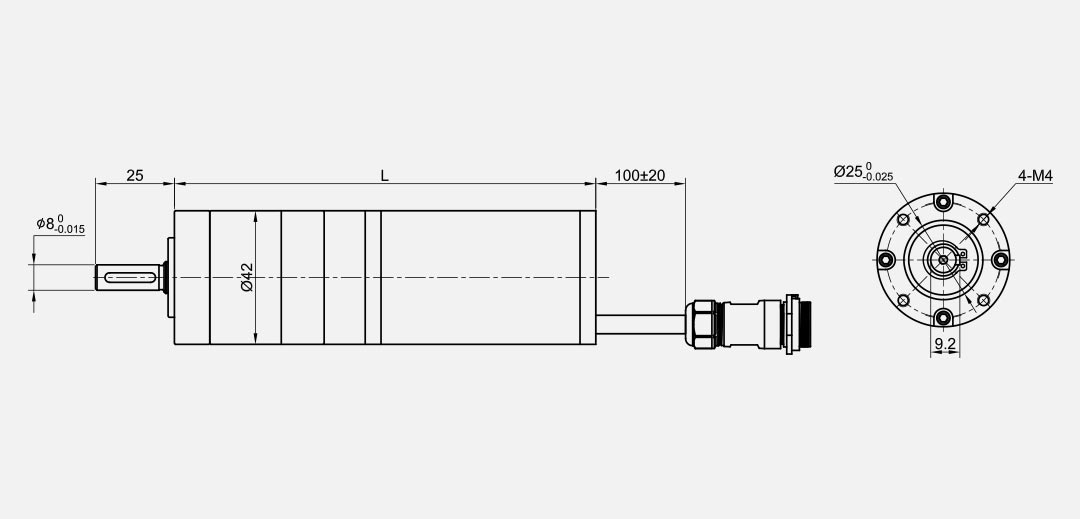

| OUTLINE MAP |
